Managing Clusters using ClusterControl MCP

In this section, we explore how to manage your database clusters using natural language through the ClusterControl MCP Server. Instead of navigating dashboards or running CLI commands, you simply describe what you want to your AI assistant and it handles the rest.

If you haven't set up the ClusterControl MCP Server yet, please go through the ClusterControl MCP documentation first before continuing.

If you have already installed and integrated it with your AI assistant, make sure the integration is working properly before proceeding. For example, if you are using Claude Desktop, go to Settings → Developer and confirm that the ClusterControl MCP is listed and running. See screenshot below

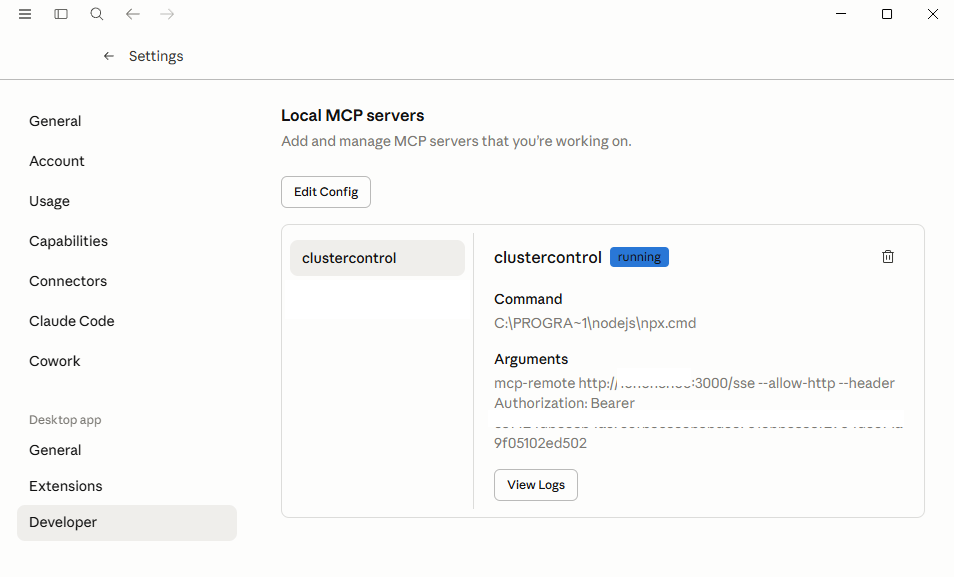

Once you can see the MCP Server is running, you are ready to start managing your clusters. The examples below cover the most common operations you can perform through your AI assistant.

Any action that changes something like creating a job, adding a user, scheduling maintenance, restoring a backup, setting node or controller config, etc. Works in two steps:

Dry run (default): AI Assistants describes exactly what it would do, without touching your CMON controller.
Execute: After you confirm, AI Assistants calls the tool again with dry_run=false to carry out the action.

High-risk operations (node restart, failover, drop cluster, drop user, delete backup schedule, restore backup, delete ClusterControl account) are marked with a destructiveHint annotation and include an additional warning in the dry-run output. MCP clients can use these hints to require your explicit confirmation before running such operations — but this safeguard depends on the client honoring the hints and the dry-run flow; the annotations are advisory metadata, not server-side enforcement. The server can also enforce this itself: with the execution guard and the approval tier switched on, a destructive call runs only after a preview of the same call and an approval. See Confirmation and Approval.

User and Access Management

Manage database accounts, review privileges, create or revoke access across your clusters.

List Functions

Below are the functions that currently supported by clustercontrol-mcp for User and Access Management.

Function	Purpose
`list_db_users`	List all database accounts on a cluster (Required Cluster ID)
`create_db_user`	Create a new database user account (Required Cluster ID)
`drop_db_user`	Delete a database user account (Required Cluster ID)
`grant_db_user`	Grant privileges to a database user (Required Cluster ID)
`revoke_db_user`	Revoke specific privileges from a database user (Required Cluster ID)
`revoke_all_db_user`	Revoke all privileges from a database user (Required Cluster ID)
`list_cmon_users`	List all ClusterControl controller user accounts (Required Cluster ID)
`list_cmon_groups`	List all ClusterControl controller user groups (Required Cluster ID)
`create_cmon_user`	Create a new ClusterControl controller user account (Required Cluster ID)
`set_cmon_user`	Modify a ClusterControl controller user profile (Required Cluster ID)
`drop_cmon_user`	Delete a ClusterControl controller user account (Required Cluster ID)

Example Prompt

Here are some examples of using clustercontrol-mcp for User and Access Management:

List existing users and groups using prompt

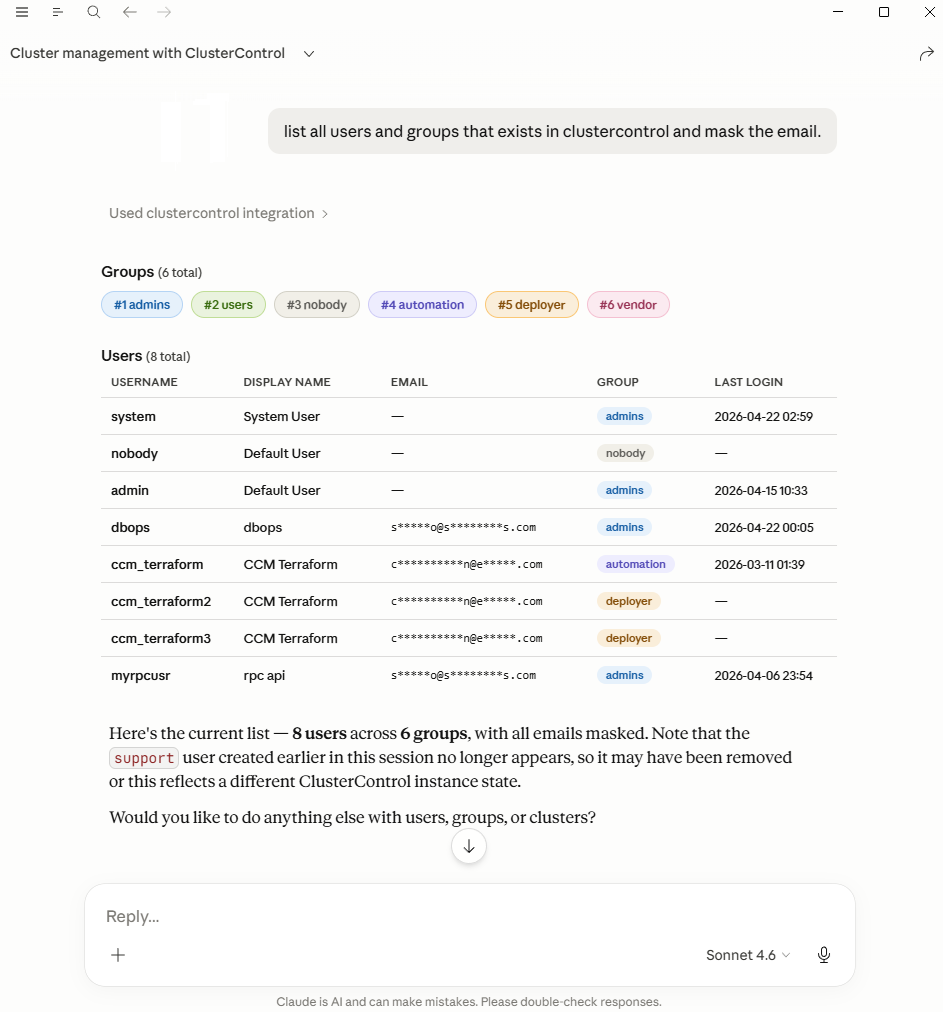

List all users and groups that exists in clustercontrol and mask the email
Create ClusterControl user and attach to group using prompt

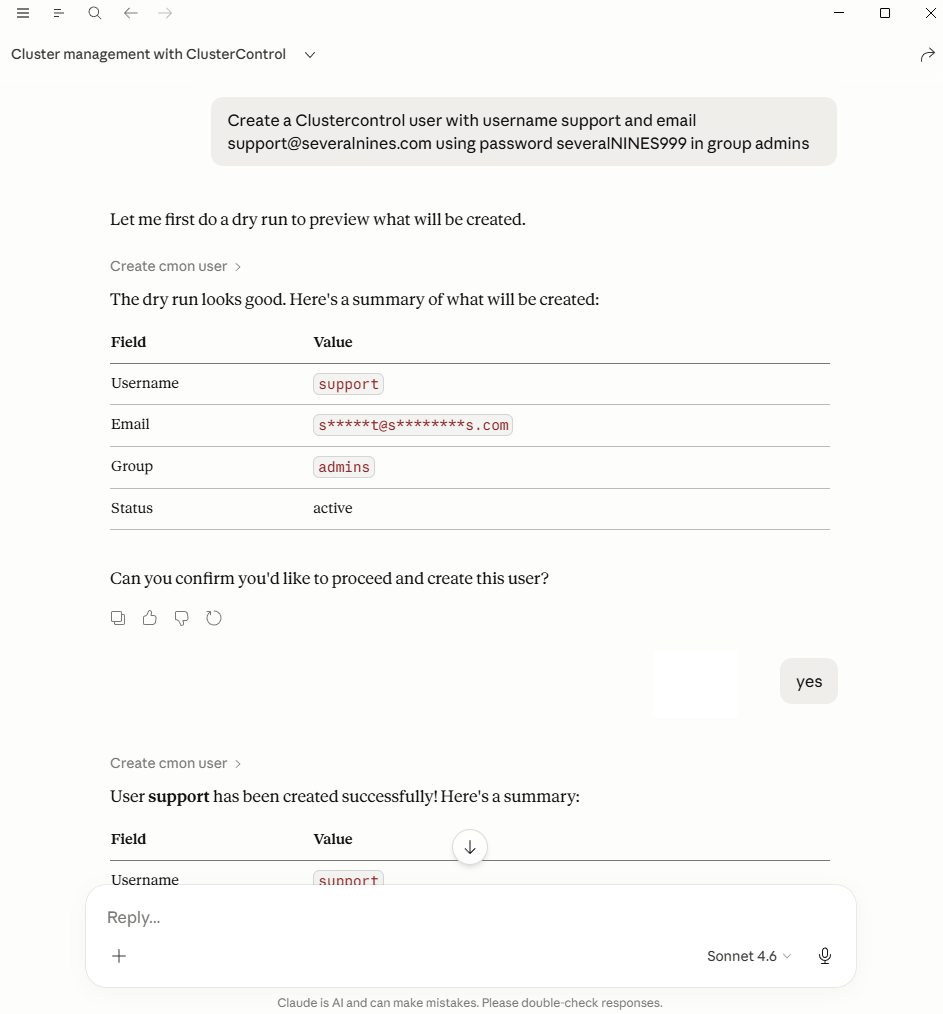

Create a Clustercontrol user with username support and email [email protected] using password severalNINES999 in group admins

Cluster Inventory and Health

Get a complete picture of your clusters, nodes, topology, and active alarms.

List Functions

Function	Purpose
`list_clusters`	Full fleet overview with cluster types, states, and versions
`get_cluster`	Detailed view of a specific cluster including all hosts and their roles (Required Cluster ID)
`get_cluster_topology`	Normalized topology view showing nodes and replication links (Required Cluster ID)
`list_nodes`	Flattened node inventory across all clusters or one cluster (Optional Cluster ID)
`list_alarms`	Active alarms for a specific cluster (Required Cluster ID)
`list_all_alarms`	Active alarms across the entire fleet
`get_controller_info`	CMON version, RPC version, and connectivity status
`get_cluster_log`	Contents of one collected log file, addressed by (cluster_id, hostname, filename). Read-only; returns the tail of the last 200 lines by default, with optional max_bytes, port, and tail_lines parameters (Required Cluster ID)
`export_cluster_log`	Writes the full contents of one collected log file to a local output_path on the MCP Server host; the file is created with mode 0600 (Required Cluster ID)
`get_cmon_logs`	CMON daemon log entries for a cluster. New optional filters: severity, component, hostname, since
`get_cmon_log_statistics`	Summary counts of CMON log entries by severity and component
`list_cluster_logs`	Inventory of log files CMON has collected from cluster hosts (mysqld.log, postgresql-*.log, prometheus.log, agent_internal_logs.log, cmnd.log)

Example Prompt

Here are some examples of using clustercontrol-mcp for Cluster Inventory and Health:

Get information about Cluster databases

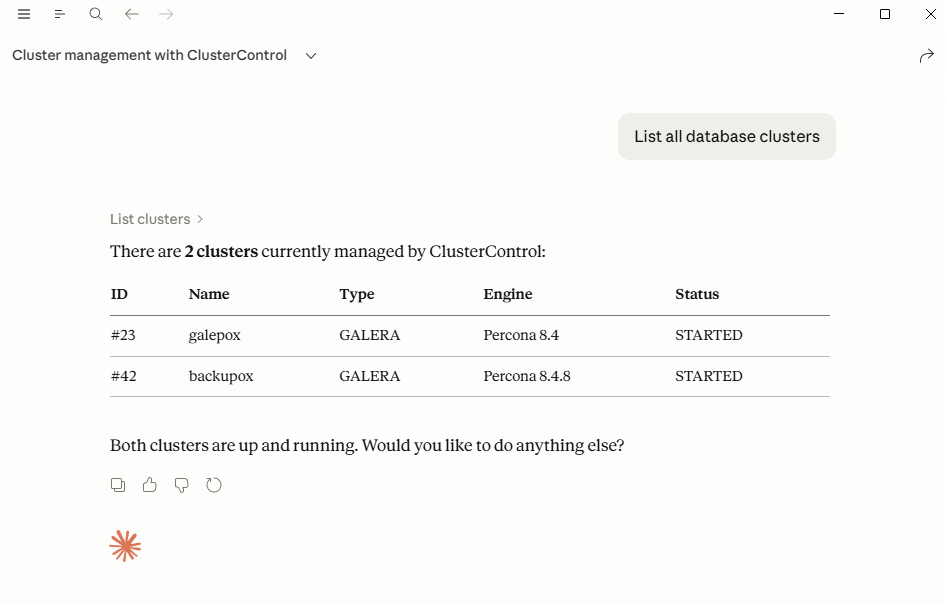

List all database clusters

Get details for cluster cluster_id or cluster_name

Get the logs for cluster cluster_id or cluster_name

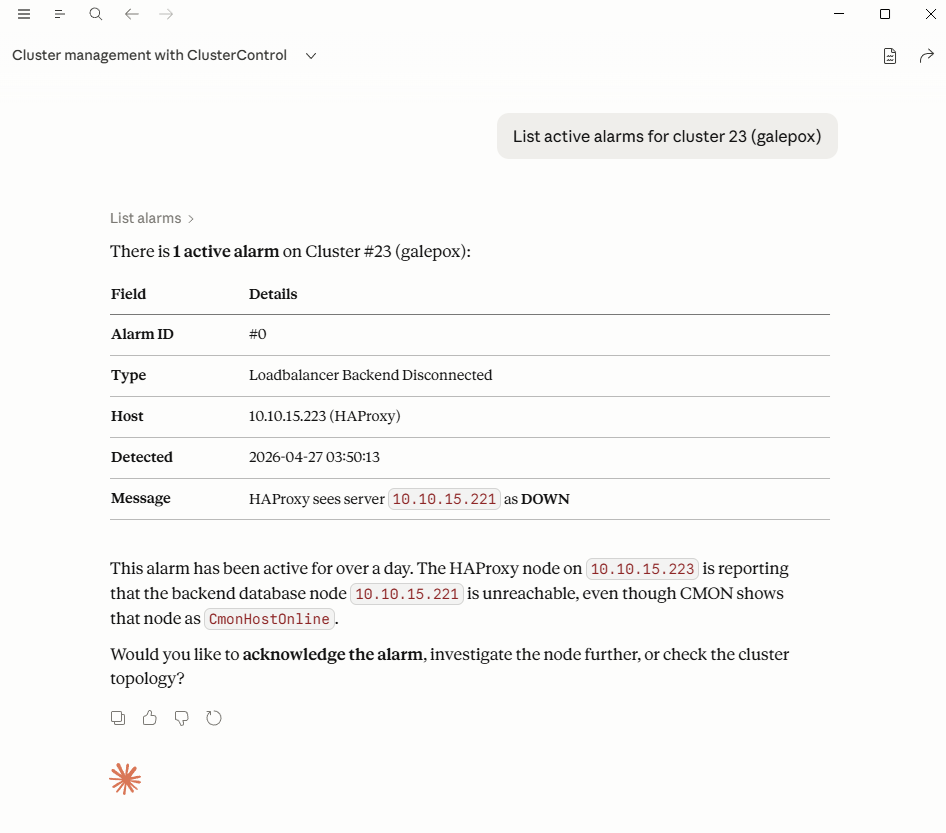

List active alarms for cluster cluster_id or cluster_name

Tips

On a large installation, ask for a number of items at a time, for example "list the first 20 alarms". The list tools take a limit, and a page that leaves items out ends with a cursor the assistant passes back to read the rest.

Performance Analysis

Identify slow queries, long-running transactions, deadlocks, and other performance bottlenecks across your database fleet.

List Functions

Function	Purpose
`get_cluster_stats`	Time-series CPU, memory, disk, network, SQL, and DB stats (Required Cluster ID)
`get_top_queries`	Top resource-consuming query digests (Required Cluster ID)
`get_sql_processes`	Live process list across all nodes (Required Cluster ID)
`kill_db_process`	Terminate runaway queries (Required Cluster ID)
`get_db_growth`	Historical database size trends for capacity planning (Required Cluster ID)
`check_no_primary_keys`	Find tables missing a primary key (Required Cluster ID)
`check_redundant_indexes`	Find redundant indexes (Required Cluster ID)
`check_myisam_tables`	Find tables using the MyISAM storage engine (Required Cluster ID)
`get_tx_deadlocks`	Transaction deadlock analysis with blocking SQL

Example Prompt

Here are some examples of using clustercontrol-mcp for Performance Analysis:

Show current processlist from the cluster.

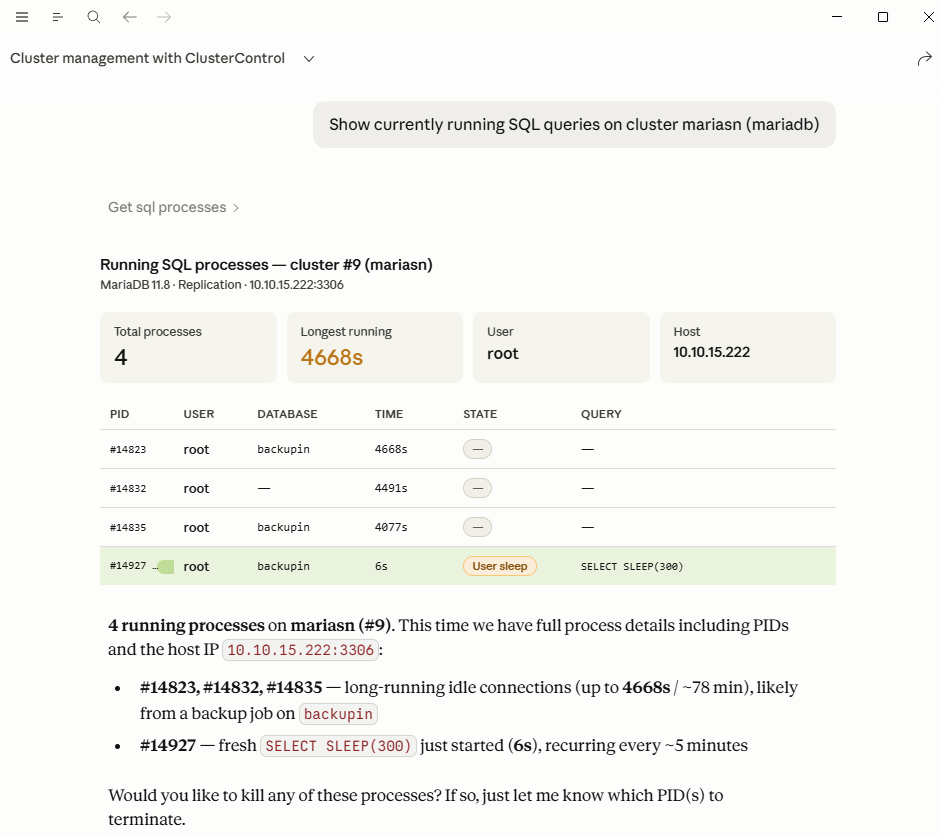

Show currently running SQL queries on cluster mariasn (mariadb)
Kill the running job

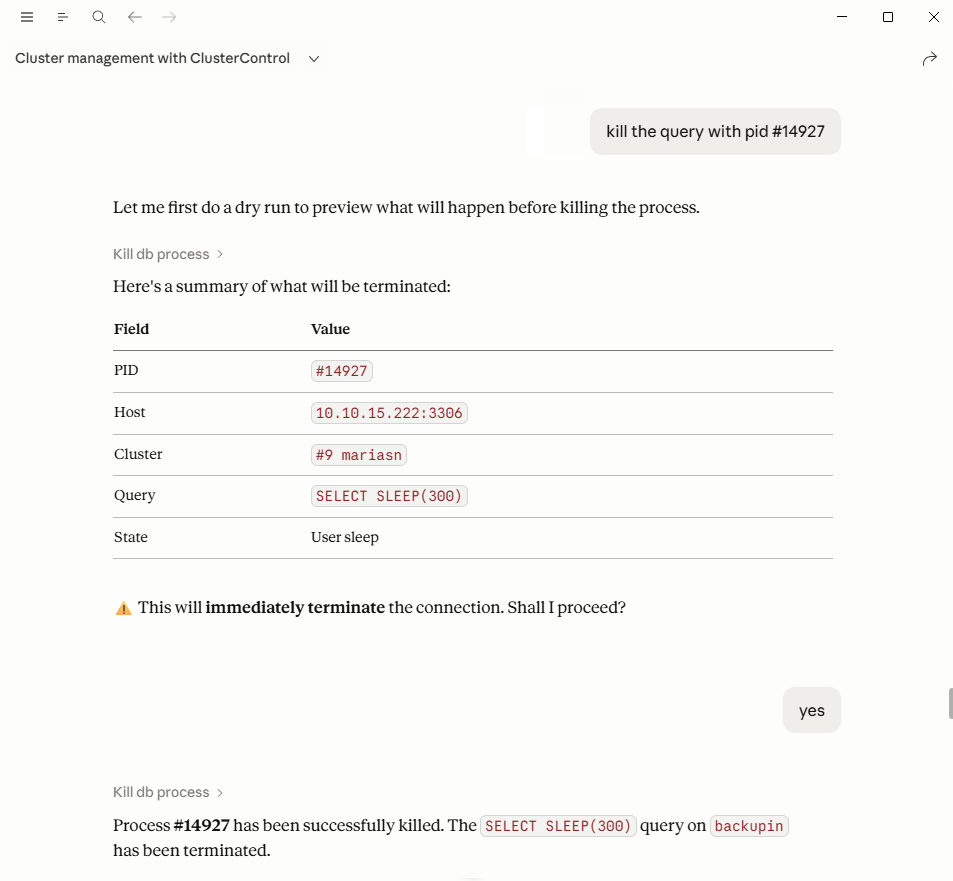

Kill the query with pid #14927

Jobs and Operations

Monitor running and completed jobs, track task progress, and review operational history across your clusters.

List Functions

Function	Purpose
`list_jobs`	Recent jobs with optional status and command filters (Required Cluster ID)
`get_job_log`	Full log output for a specific job (Required Cluster ID and Job id)
`create_job`	Trigger backup, restart, failover, and other cluster operations (Required Cluster ID and command string)
`kill_job`	Terminate stuck jobs (Required Job ID)

Galera clusters with a node down

While a Galera node is down, the MCP Server refuses the actions that would let ClusterControl's own recovery choose which node to bootstrap from: turning automatic recovery on, ending a cluster-wide maintenance window while it is on, killing a job that holds the cluster in maintenance (such as a restore, an upgrade or a rolling restart), and a forced cluster removal while such a job runs. A Galera start without a named donor is always refused. To bring back a cluster whose every node is down, use the sop_galera_recovery procedure below.

Example Prompt

Here are some examples of using clustercontrol-mcp for Jobs and Operations:

List recent jobs on cluster cluster_id or cluster_name

Show log for job job_id on cluster cluster_id or cluster_name

Backups and Scheduling

Manage backup jobs, review backup history, create schedules, and restore from existing backups.

List Functions

Function	Purpose
`list_backups`	Recent backups with status and method filters (Required Cluster ID)
`get_latest_backup`	Most recent backup, optionally only successful ones (Required Cluster ID)
`list_backup_schedules`	View all configured backup schedules (Required Cluster ID)
`get_backup_schedule_summary`	Summary of backup schedules for a cluster (Required Cluster ID)
`create_backup_schedule`	Create a new recurring backup schedule (Required Cluster ID)
`update_backup_schedule`	Update an existing backup schedule (Required Cluster ID)
`delete_backup_schedule`	Delete a backup schedule (Required Cluster ID)
`delete_backup`	Delete a backup record (Required Cluster ID)
`restore_backup`	Restore from an existing backup (Required Cluster ID)

Example Prompt

Here are some examples of using clustercontrol-mcp for Backups and Scheduling:

When was the last successful backup on cluster cluster_id or cluster_name?

Create a MariaDB backup schedule on cluster cluster_id or cluster_name every day at 4:25 AM using the mariabackup(full) backup method.

Tips

To successfully create a backup schedule, please mention the exact backup method name that you want to use, for example mariabackup(full) for a full backup. If you only mention use mariabackup method, the backup schedule job will be created but it will fail because the backup method is not recognized by ClusterControl.

ProxySQL

Inspect and manage ProxySQL instances including backend servers, query routing rules, and traffic statistics.

List Functions

Function	Purpose
`list_proxysql_top_queries`	Top queries by execution time through the proxy (Required Cluster ID)
`list_proxysql_rules`	Query routing rules (Required Cluster ID)
`list_proxysql_servers`	Backend server health and hostgroup configuration (Required Cluster ID)

Example Prompt

Here are some examples of using clustercontrol-mcp for ProxySQL :

List ProxySQL backend servers on cluster cluster_id or cluster_name

List ProxySQL query routing rules on cluster cluster_id or cluster_name

Show top queries through ProxySQL on cluster cluster_id or cluster_name

Configuration

View and modify configuration parameters at the cluster, node, and controller level.

List Functions

Function	Purpose
`get_cluster_config`	View cluster-level database settings, optionally only the `names` you list (Required Cluster ID)
`get_node_config`	View node-level database settings, optionally only the `names` you list (Required Cluster ID and Node)
`set_node_config`	Modify a node configuration parameter (with dry-run safety) (Required Cluster ID and Node)
`unset_node_config`	Reset a node configuration parameter to default (with dry-run safety) (Required Cluster ID and Node)
`get_controller_config`	View CMON controller runtime parameters; by default only those that differ from their default (Required Cluster ID)
`set_controller_config`	Modify CMON controller runtime parameters (with dry-run safety) (Required Cluster ID)

Example Prompt

Here are some examples of using clustercontrol-mcp for Configuration :

Get configuration for node [node] on cluster cluster_id or cluster_name

Set max_connections to 150 on node [node] in cluster cluster_id or cluster_name

Reset max_connections to default on node [node] in cluster cluster_id or cluster_name

Which controller settings on cluster cluster_id or cluster_name differ from their defaults?

Tips

get_controller_config lists only the settings that differ from their default, and ends with a line counting what it left out. Ask for all settings, or with descriptions, to see the rest. The names filter takes names or wildcards such as *backup*.

Advisors and Findings

Ask for findings rather than raw data. Each advisor inspects a cluster and reports what is wrong or risky as machine-readable findings, each naming its cluster and, where it can, what to run next. Missing or stale data is reported as unknown, never as clean.

List Functions

Function	Purpose
`advise_replication_topology`	Broken replication links, lagging replicas and single-node primaries
`advise_failover_readiness`	Whether ClusterControl could fail over now, and to which replica or standby
`advise_backup_posture`	Whether the backups will restore and the recovery point is met
`advise_workload`	Query hotspots, likely full scans, long-running and idle-in-transaction sessions, recent lock waits
`advise_galera_health`	Whether a Galera cluster is whole, in sync and keeping up: partitions, nodes not synced, flow control
`audit_db_privileges`	Database accounts with over-broad privileges
`check_config_drift`	Configuration that differs between the nodes of a cluster
`check_ssl_posture`	Whether SSL is actually enabled on the database servers
`check_version_eol`	Database releases at or past end of support
`check_capacity`	Which database host fills its disk first, and when at its recent growth
`get_fleet_posture`	Runs eight advisors over every cluster you can read and ranks the findings, worst cluster first
`get_fleet_digest`	What changed across every cluster you can read since a time you give: new and cleared findings, alarms, failed jobs

Example Prompt

Here are some examples of using clustercontrol-mcp for advisors and findings:

Which of my clusters need attention first, and why?

Is replication healthy on cluster cluster_id or cluster_name?

Will my backups on cluster cluster_id or cluster_name restore?

What in the workload on cluster cluster_id or cluster_name needs attention?

Is my Galera cluster cluster_id or cluster_name in sync?

When will the disks on cluster cluster_id or cluster_name fill up?

What changed across my clusters since 18:00 yesterday?

Which of my database releases are out of support?

The Fleet View

get_fleet_posture answers "which clusters need attention first, and why?" by running eight advisors over every cluster you can read. An advisor that does not take a cluster's engine is listed for that cluster as not_applicable, never as healthy.

Advisor	Runs on
`advise_replication_topology`	MySQL replication and single-node MySQL, Galera (redundancy only), and `POSTGRESQL_SINGLE`
`advise_failover_readiness`	Oracle MySQL and Percona replication, and community PostgreSQL 14 to 18 `POSTGRESQL_SINGLE`
`advise_backup_posture`	Every engine
`check_ssl_posture`	Every engine's database nodes, as ClusterControl classifies them
`check_version_eol`	Every engine; a vendor or release the bundled lifecycle table does not list is reported as unknown
`check_capacity`	Every engine's database nodes, as ClusterControl classifies them
`advise_workload`	MySQL-family clusters (replication, single-node, Galera, group replication), and `POSTGRESQL_SINGLE` from its process list only
`advise_galera_health`	Galera clusters of Percona XtraDB Cluster 8.0 and 8.4 and MariaDB Galera 10.11 and 11.4

Unknown is never clean. A cluster whose data could not be read, or is stale, counts as unknown. Workload data the server could not judge stays visible as WORKLOAD_DATA_UNAVAILABLE, an info finding counted once as unknown. On PostgreSQL the query digests and lock waits are always reported that way, because the server does not read them there.
A call has a 45-second budget. What is still running when it runs out is cut and what has not started is skipped as out of time, with the findings already read kept. A Galera cluster takes at least 5 seconds to assess, because flow control is judged from two reads 5 seconds apart.
The load on the controller is bounded. A call reads four clusters at a time, and every fleet call the server serves, from any identity, shares eight concurrent controller requests, at most four of them for one identity. A call that finds them all in use waits, spending its own budget. This bounds how many requests run at once, not how many a call makes in total.
Large fleets come in pages. The answer holds at most 50 findings and 64 KiB of text. When clusters are cut, or left incomplete by the budget, it ends with a cursor, and the next call assesses the clusters no earlier page returned.

get_fleet_digest uses the same eight advisors to report what changed. It needs a since within the last 72 hours. New and cleared findings are reported against the baseline an earlier digest captured: pass the next_since a completed digest returned as the next call's since, for example each evening and again each morning. Baselines live in the server's memory, so a restart loses them, and a missing baseline or source is reported as unknown, never as cleared. Backup misses are always unknown in this release.

Guided Procedures

Guided procedures are MCP prompts that walk the AI assistant through a task step by step. Each procedure that changes a cluster checks that the cluster is eligible, previews before it acts, asks for approval, and stops for a person when something is off. It ends with one verdict line, VERDICT_SUCCESS, VERDICT_FAILURE or VERDICT_UNKNOWN, from a read the assistant runs again at the end. sop_daily_review only reads.

List Functions

Procedure	Purpose
`sop_rebuild_replica`	Rebuild a MySQL-family replica whose replication link is down
`sop_rebuild_standby`	Rebuild a PostgreSQL 14 to 18 standby that cannot follow its primary
`sop_backup_verify`	Prove a MySQL-family backup restores, onto a spare host a person chooses
`sop_backup_verify_postgresql`	Prove a PostgreSQL `pg_basebackup` or `pgdumpall` backup restores
`sop_failover_drill`	Rehearse a failover: switch a MySQL replication primary over to a chosen replica. A PostgreSQL cluster is routed to `sop_failover_drill_postgresql`
`sop_failover_drill_postgresql`	Rehearse a failover on a PostgreSQL 14 to 18 cluster, to the standby the failover advisor chooses
`sop_switchover_postgresql`	Switch a PostgreSQL 14 to 18 primary over to a caught-up standby
`sop_galera_recovery`	Bring back a Galera cluster whose every node is down, from its most advanced node, with a person confirming each host is shut down
`sop_minor_upgrade`	Apply the newest minor release to a MySQL replication or Galera cluster
`sop_minor_upgrade_postgresql`	Apply the newest minor release to a PostgreSQL 14 to 18 cluster
`sop_major_upgrade`	Upgrade a cluster to a new major version
`sop_pitr_restore`	Restore a cluster to a point in time from one of its own backups
`sop_daily_review`	Collect what changed, the active alarms and the fleet view into one paste-ready summary; read-only, with nothing to approve

Example Prompt

Here are some examples of using clustercontrol-mcp guided procedures:

Rebuild the broken replica on cluster cluster_id or cluster_name

Prove that the latest backup of cluster cluster_id or cluster_name restores

Switch cluster cluster_id or cluster_name over to its standby

Run a failover drill on PostgreSQL cluster cluster_id or cluster_name

Every node of Galera cluster cluster_id or cluster_name is down. Recover it.

Restore cluster cluster_id or cluster_name to how it was at 10:00 this morning

Give me the daily review since 18:00 yesterday

Note

Whether the server itself enforces the preview and the approval depends on its settings. See Confirmation and Approval.

Incident Triage, Upgrades and More

List Functions

Function	Purpose
`get_incident_bundle`	Gather the context of an incident on a cluster in one call; it can be anchored on a job
`get_job_checkpoint`	Where a job stopped, and what it was doing when it did
`list_available_upgrades`	The package upgrades the controller last found for each host
`export_terraform`	Export a cluster as Terraform for the ClusterControl provider
`search_docs`	Search the ClusterControl documentation installed with the MCP Server, without network access
`get_session_info`	Which ClusterControl user this session acts as, its transport, the deployment profile, the controller's version, and whether approvals can reach it
`summarize_agent_activity`	What agents asked to do over an interval, from the server's own audit log: calls, previews, execution requests, refusals and approval decisions

Example Prompt

Something is wrong with cluster cluster_id or cluster_name. Gather what you need to triage it.

Where did job job_id get to? Is it safe to move on?

Which package upgrades are waiting on cluster cluster_id or cluster_name?

How do I configure backup retention in ClusterControl?

What did you ask ClusterControl to do between 09:00 and 17:00 today, and was anything refused?

Note

summarize_agent_activity reads the MCP Server's audit log, so auditing must be on, and it is not in either deployment profile's allow list. Each identity sees its own activity; see Agent Activity.

Maintenance, Audit, and Other Tools

Schedule maintenance windows, review audit logs, generate error reports, and perform other administrative tasks.

List Functions

Function	Purpose
`list_maintenance`	List maintenance windows for a cluster (Required Cluster ID)
`list_all_maintenance`	List maintenance windows across all clusters (Required Cluster ID)
`add_maintenance_window`	Schedule a maintenance window for a host (Required Cluster ID)
`remove_maintenance_window`	Remove a maintenance window by UUID (Required Cluster ID)
`remove_maintenance_windows_by_filter`	Bulk remove maintenance windows by cluster or hostname (Required Cluster ID)
`list_audit_log`	Who did what, when, and from where (Required Cluster ID)
`acknowledge_alarm`	Acknowledge a single alarm (Required Cluster ID)
`acknowledge_alarms_by_filter`	Bulk acknowledge alarms by cluster or filter (Required Cluster ID)
`list_schemas`	List all database schemas on a cluster (Required Cluster ID)
`create_schema`	Create a new database schema (Required Cluster ID)
`list_publications`	PostgreSQL logical replication publications (Required Cluster ID)
`list_subscriptions`	PostgreSQL logical replication subscriptions (Required Cluster ID)
`list_error_reports`	List generated error reports for a cluster (Required Cluster ID)
`generate_error_report`	Generate a new error report (Required Cluster ID)
`download_error_report`	Download a generated error report archive (Required Cluster ID)
`unpack_error_report`	Extract a downloaded error report archive (Required Cluster ID)

Example Prompt

Here are some examples of using clustercontrol-mcp for Maintenance, Audit, and Other Tools :

Show audit logs across all clusters

List error reports for cluster cluster_id or cluster_name

Generate an error report for cluster cluster_id or cluster_name

Tips

The download_error_report tool will download the error report to the host where clustercontrol-mcp is installed. When using the AI Assistant, you are not restricted to English, feel free to use your local language. You can also create your own custom prompts tailored to your specific needs, and integrate ClusterControl MCP with any automation tools you already have.

Attention

Please use ClusterControl MCP with AI Assistants wisely and be cautious about the information you share with them. Avoid sharing sensitive or confidential data such as API keys, or any personal information. ClusterControl MCP is designed to simplify the management of clusters maintained by ClusterControl, with a scope limited to ClusterControl-related operations only.
