Importing data from Google Cloud SQL

This procedure describes how to import data from Google Cloud SQL to a MySQL datastore located in CCX.

  • The MySQL Datastore on CCX is denoted as the 'CCX Primary'
  • The GCP Source of the data is denoted as the 'GCP Primary'

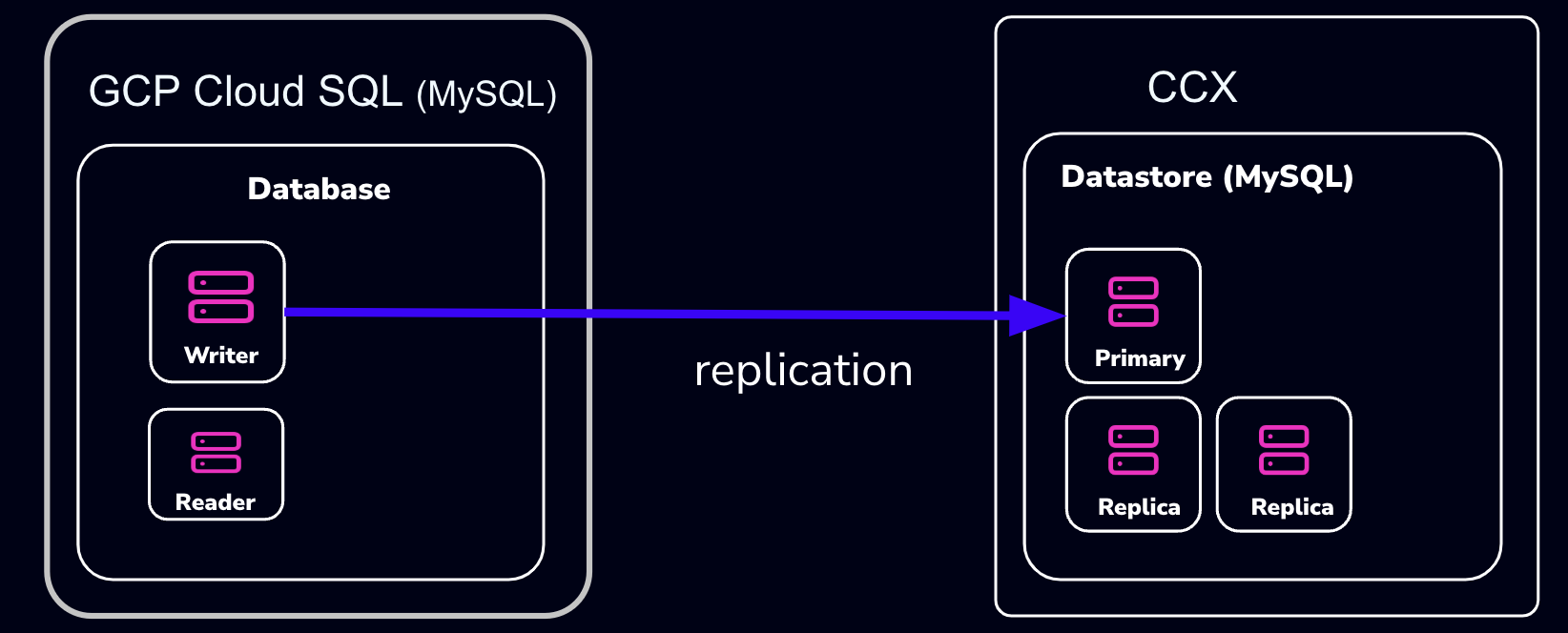

Schematically, what we will setup is this:

sd

Note

If you dont want to setup replication, then you can chose to only apply the sections:

  • Create a database dump file of the GCP Primary.
  • Apply the dumpfile on the CCX replica.

Preparations

  • Create a datastore on CCX. Please note that you can also replicate from MySQL 8.0 to MySQL 8.4.

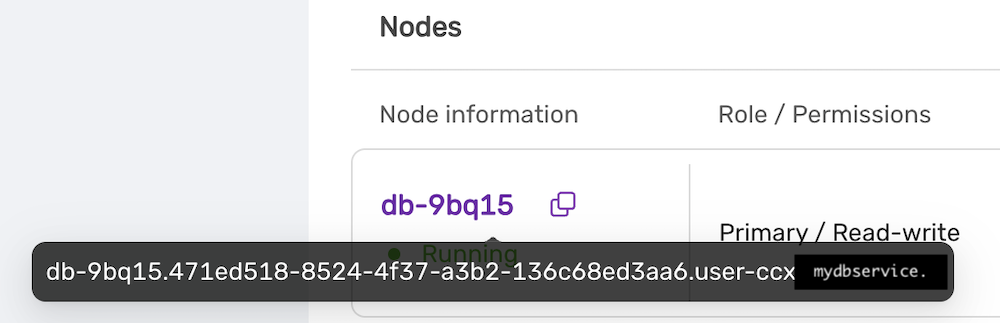

  • Get the endpoint of the CCX Primary (under the Nodes section). sd . Then endpoint in our case is db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net.
  • The GCP Primary must have a Public IP.
  • Get the endpoint of the GCP Primary. In this example, the endpoint is 34.51.xxx.xxx
  • Update the Security group on AWS RDS to allow the IP address of the CCX Primary to connect. To get the IP address of the CCX Primary you do:
    dig db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net

  • Ensure you can connect a mysql client to both the CCX Primary and the RDS Writer.

Create a replication user on the GCP Primary instance

Create a replication user with sufficient privileges on the RDS Writer. In the steps below, we will use repl and replpassword as the credentials when setting up the replica on CCX.

CREATE USER 'repl'@'%' IDENTIFIED BY 'replpassword';
GRANT REPLICATION SLAVE ON *.* TO  'repluser'@'%'; #mysql 8.0
GRANT REPLICATION REPLICATION_SLAVE_ADMIN ON *.* TO  'repluser'@'%';

Create the mysqldump

Be sure to specify the database you wish to replicate. You must omit any system databases. In this example we will dump the databases prod and crm.

mysqldump -uroot -p   -h34.51.xxx.xxx  --databases prod crm  --triggers --routines --events  --set-gtid_purged=OFF --source-data --single-transaction  > dump.sql

Wait for it to complete.

Load the dump on the replica

Create a replication filter on the replica

The replica filter prevents corruption of the datastore and we are not interested in changes logged by AWS RDS to mysql.rds* tables anyways. Also add other databases that you do not wish to replicae to the filter.

Note

If the CCX datastore's system tables are corrupted using replication then the datastore must be recreated.

CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=(mysql, sys, performance_schema);

Important! If your database dump contains SPROCs, triggers or events, then you must replace DEFINER:

sed 's/\sDEFINER=`[^`]*`@`[^`]*`//g' -i dump.sql

Apply the dumpfile on the CCX Primary:

cat dump.sql | mysql -uccxadmin -p -hCCX_PRIMARY

Connect the CCX Primary to the GCP Primary

Issue the following commands on the CCX Primary:

CHANGE REPLICATION SOURCE TO SOURCE_HOST='34.51.xxx.xxx', SOURCE_PORT=3306, SOURCE_USER='repl', SOURCE_PASSWORD='replpassword', SOURCE_SSL=1;

Start the replica

On the CCX Primary do:

START REPLICA;

followed by:

SHOW REPLICA STATUS\G

And verify that:

             Replica_IO_State: Waiting for source to send event
         ..
         Replica_IO_Running: Yes
             Replica_SQL_Running: Yes

When the migration is ready

At some stage you will need to point your applications to the new datastore. Ensure:

  • that there are no appliecation writes to the RDS Writer.
  • the CCX Primary has applied all data (use SHOW REPLICA STATUS \G , check the Seconds_Behind_Master)
  • Connect the applications to the new datastore.

Then you can clean up the replication link on the CCX Primary:

STOP REPLICA;
RESET REPLICA ALL;
CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=();

Troubleshooting

If the replication fails to start then verify:

  • All the steps above has been followed.
  • Ensure that the IP address of the CCX Primary is added to the security group used by the GCP Primary instance.
  • Ensure that you have the correct IP/FQDN of the GCP Primary instance.
  • Ensure that users are created correctly and using the correct password.
  • Ensure that the dump is fresh.
