Importing data from Amazon RDS

This procedure describes how to import data from Amazon RDS to a MySQL datastore located in CCX.

  • The MySQL Datastore on CCX is denoted as the 'CCX Primary'
  • The RDS Source of the data is denoted as the 'RDS Writer'

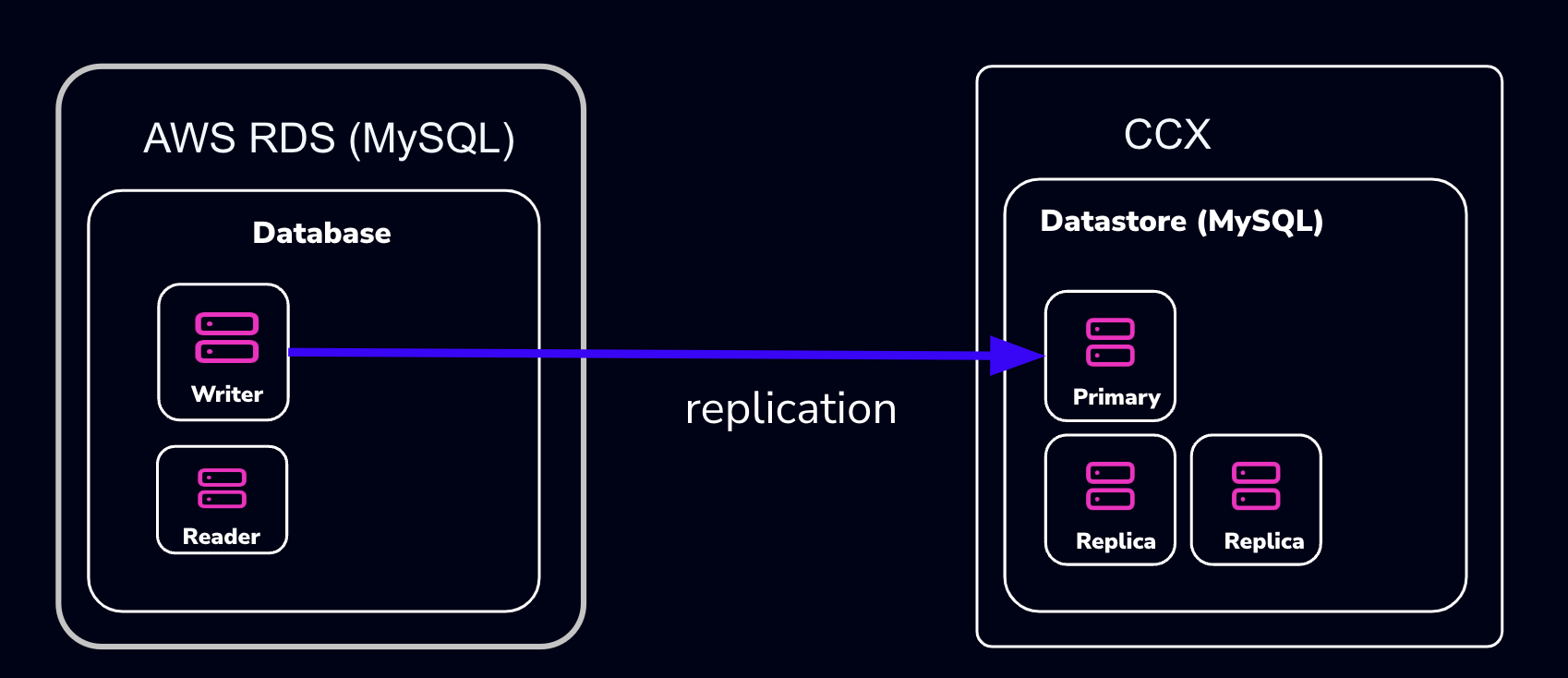

Schematically, what we will setup is this:

sd

Warning

AWS RDS tries to make it as hard as possible to migrate away from. Many procedures on the internet, as well as AWS own procedures will not work.

The migration we suggest here (and is the only one we know works) requires that the RDS Writer instance is blocked for writes until a mysqldump has been completed. However, AWS RDS blocks operatios such as FLUSH TABLES WITH READ LOCK: mysqldump: Couldn't execute 'FLUSH TABLES WITH READ LOCK': Access denied for user 'admin'@'%' (using password: YES) (1045) Thus, the actual applications must be blocked from writing.

Also, some procedures on the internet suggests creating a read-replica. This will not work either, as the AWS RDS Read-replica is crippled and lacks GTID support.

Note

If you dont want to setup replication, then you can chose to only apply the sections:

  • Create a database dump file of the RDS Writer
  • Apply the dumpfile on the CCX replica

Preparations

  • Create a datastore on CCX. Please note that you can also replicate from MySQL 8.0 to MySQL 8.4.
  • Get the endpoint of the CCX Primary (under the Nodes section). sd . Then endpoint in our case is db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net.
  • Get the endpoint of the RDS Writer. In this example, the endpoint is database-1.cluster-cqc4xehkpymd.eu-north-1.rds.amazonaws.com
  • Update the Security group on AWS RDS to allow the IP address of the CCX Primary to connect. To get the IP address of the CCX Primary you do:
    dig db-9bq15.471ed518-8524-4f37-a3b2-136c68ed3aa6.user-ccx.mydbservice.net

  • Ensure you can connect a mysql client to both the CCX Primary and the RDS Writer.

Create a replication user on the RDS Writer instance:

Create a replication user with sufficient privileges on the RDS Writer. In the steps below, we will use repl and replpassword as the credentials when setting up the replica on CCX.

CREATE USER 'repl'@'%' IDENTIFIED BY 'replpassword';
GRANT REPLICATION SLAVE ON *.* TO  'repluser'@'%'; #mysql 8.0
GRANT REPLICATION REPLICATION_SLAVE_ADMIN ON *.* TO  'repluser'@'%';

Block Writes to the RDS Writer Instance

This is the hardest part. You must ensure your applications cannot write to the Writer instance. Unfortunately, AWS RDS blocks operations like FLUSH TABLES WITH READ LOCK.

Create a consistent dump

Assuming now that writes are blocked on the RDS Writer Instance, you must now get the binary log file and the position of the RDS Writer instancde.

Get the replication start position

The start position (binary log file name, and position) is used to tell the replica where to start replicating data from.

MySQL 8.0: SHOW MASTER STATUS\G
MySQL 8.4 and later: SHOW BINARY LOG STATUS\G

It will output:

 *************************** 1. row ***************************
             File: mysql-bin-changelog.000901
         Position: 584
     Binlog_Do_DB:
 Binlog_Ignore_DB:
Executed_Gtid_Set: 796aacf3-24ed-11f0-949d-0605a27ab4b9:1-876
1 row in set (0.02 sec)

Record the File: mysql-bin-changelog.000901 and the Position: 584 as they will be used to setup replication from.

Create the mysqldump

Be sure to specify the database you wish to replicate. You must omit any system databases. In this example we will dump the databases prod and crm.

mysqldump -uadmin -p -hdatabase-1.cluster-cqc4xehkpymd.eu-north-1.rds.amazonaws.com --databases prod crm --triggers --routines --events --set-gtid_purged=OFF --single-transaction  > dump.sql

Wait for it to complete.

Unblock Writes to the RDS Writer Instance

At this stage it is safe to enable application writes again.

Load the dump on the replica

Create a replication filter on the replica

The replica filter prevents corruption of the datastore and we are not interested in changes logged by AWS RDS to mysql.rds* tables anyways. Also add other databases that you do not wish to replicae to the filter.

Note

If the CCX datastore's system tables are corrupted using replication then the datastore must be recreated.

CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=(mysql, sys, performance_schema);

Important! If your database dump contains stored procedures, triggers or events, then you must replace DEFINER:

sed 's/\sDEFINER=`[^`]*`@`[^`]*`//g' -i dump.sql

Apply the dumpfile on the CCX Primary:

cat dump.sql | mysql -uccxadmin -p -hCCX_PRIMARY

Connect the CCX Primary to the RDS Writer Instance

The CCX Primary must be instructed to replicate from the RDS Writer. We have from the earlier step binlog file and position:

  • mysql-bin-changelog.000901
  • 584
CHANGE REPLICATION SOURCE TO SOURCE_HOST='database-1.cluster-cqc4xehkpymd.eu-north-1.rds.amazonaws.com', SOURCE_PORT=3306, SOURCE_USER='repl', SOURCE_PASSWORD='replpassword', SOURCE_SSL=1, SOURCE_LOG_FILE='mysql-bin-changelog.000901', SOURCE_LOG_POS=584;

Start the replica

On the replica do:

START REPLICA;

followed by:

SHOW REPLICA STATUS;

And verify that:

             Replica_IO_State: Waiting for source to send event
                ...
           Replica_IO_Running: Yes
          Replica_SQL_Running: Yes

When the migration is ready

At some stage you will need to point your applications to the new datastore. Ensure:

  • Prevent writes to the RDS Writer.
  • Make sure the CCX Primary has applied all data (use SHOW REPLICA STATUS)
  • Connect the applications to the new datastore.
STOP REPLICA;
RESET REPLICA ALL;
CHANGE REPLICATION FILTER REPLICATE_IGNORE_DB=();

Troubleshooting

If the replication fails to start then verify:

  • All the steps above has been followed.
  • Ensure that the IP address of the CCX Primary is added to the security group used by the RDS Writer instance.
  • Ensure that you have the correct IP/FQDN of the RDS Writer instance.
  • Ensure that users are created correctly and using the correct password.
  • Ensure that the dump is fresh.
