Billing

This documentation outlines the functionality and usage of the billing report API that generates a JSON or CSV formatted report detailing all cluster usage within a specified date range. This report includes data from active and deleted clusters and is accessible only to admin users from the admin panel.

Billing reports can be created using the billing API or from the admin UI.

Also see Tagging.

Admin UI

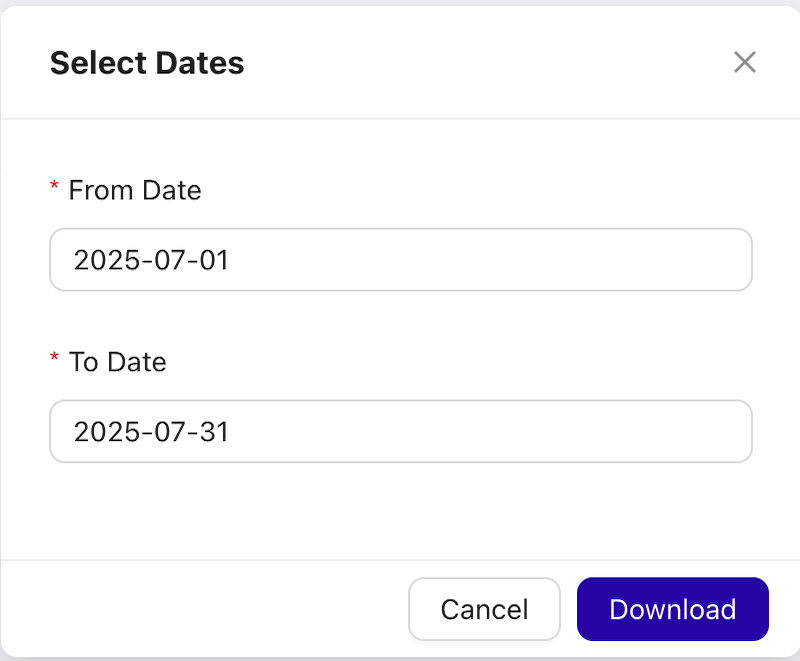

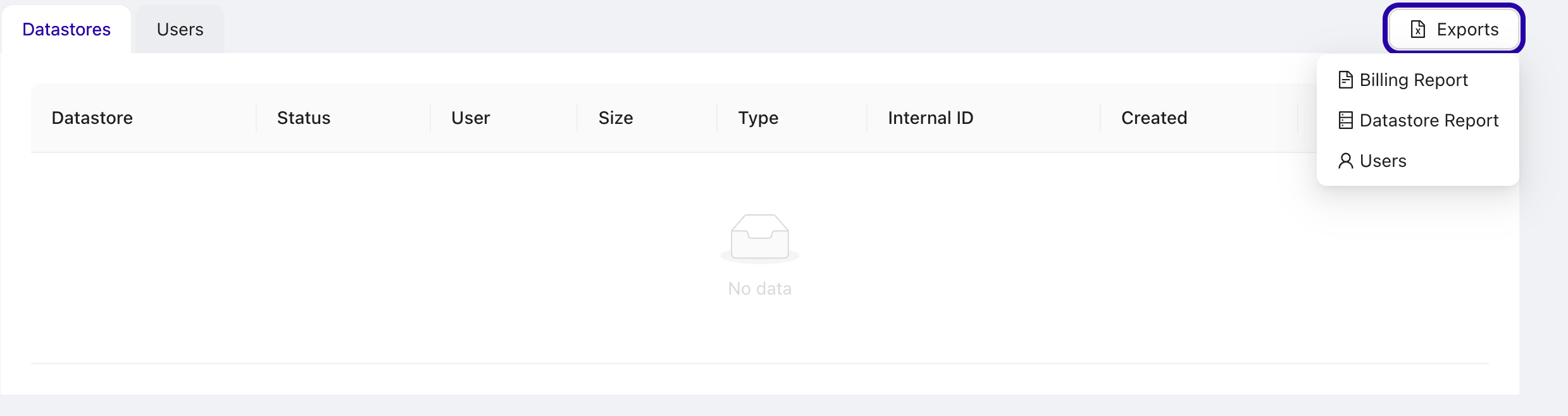

Navigate to https://ccx.example.com/auth/admin/. Select Billing Report from the action menu, and a dialog opens allowing you to set start and stop date. Press Download to download the report (in CSV).

Environment Variables

RETENTION_PERIOD: Defines how long the usage data for deleted clusters is kept (default is 6 months).

API Endpoint

The endpoint is https://ccx.example.com/api/admin/datastores/billing/usage/{type}

The reponse is either JSON or CSV.

Authentication

Basic auth is supported. The credentials are stored in the admin-basic-auth secret:

kubectl get secret -n ccx admin-basic-auth -o jsonpath={.data.password} | base64 --decode

Method: GET

Parameters:

• type: json or csv
• start: Start date of the period (YYYY-MM-DD)
• end: End date of the period (YYYY-MM-DD)

Example Request

JSON

curl -uadmin:PASSWORD -X GET "https://ccx.example.com/api/admin/datastores/billing/usage/json?start=2024-04-05&end=2024-04-05"

Response Format:

{
  "datastores": [
    {
      "datastore": "string",
      "deleted_at": "string",
      "customer_id": "string",
      "type": "string",
      "nodes_count": 0,
      "vendor": "string",
      "instances_types_usage": [
        {
          "instances_type": "string",
          "hours": 0
        }
      ],
      "volumes_types_usage": [
        {
          "volume_type": "string",
          "average_gib": 0,
          "gib_per_hours": 0
        }
      ]
    }
  ],
  "network_egress_usage_gib": 0,
  "from": "string",
  "to": "string"
}

CSV

curl -uadmin:PASSWORD -X GET "https://ccx.example.com/api/admin/datastores/billing/usage/csv?start=2024-04-05&end=2024-04-05"

Defining prices

Prices defined in the values.yaml file are not reflected in the billing report.
