Tutorial for OpenStack

For laptop/desktop installation instructions please visit Install CCX on a Laptop.

In this tutorial, we will install CCX so it is accessible from a domain, which we will call ccx.example.com.

After completing this tutorial, you will have a working solution, but you will need to configure External DNS later.

OpenStack will be configured as the cloud provider.

Prerequisites and Requirements for Public Installation

Item Description
A few sub domains E.g. ccx.example.com and cc.example.com. Please note thatcc and ccx are just examples names. You can change them to e.g adm and dbaas. Just make sure you replace ccx.example.com and cc.example.com with the new names in the steps below.
Kubernetes • Persistent Volume, Storage Class
• Nginx Ingress controller (The ingress controller must have an EXTERNAL-IP).
• External IP

See K8S requirements for minimum size of cluster and K8S version, etc.
Secrets Manager K8S secrets
Openstack Credentials E.g an openstack RC file containing the auth urls, project id etc.
Infrastructure Cloud • One "ccx-tenant" project
• VM flavors
• Attachable volumes
• Public Floating IPs (IPv4)
• Ubuntu 22.04 image
Space for PVCs About 100Gi will be used for PVCs in this tutorial. More space is needed for a production grade environment.
S3 storage For datastore backups and Operator DB backup
DNS Provider DNS providers supported by external-dns. In order to use dynamic dns config. This can be installed later.
Ubuntu 22.04LTS cloud image for VMs Cloud image for VMs hosting database (i.e., db nodes/hosts)
Root volume for VM There must be at least a 20GB root volume on each VM
Database volume on VM There must be at least 80GB data volume on each VM for database
Project for CCX datastores A global project for CCX datastores
Project quota Sufficient quota for global project
Project network Appropriate network for global project
Floating IPs A reasonable amount of floating IPs should be pre-allocated in the network where datastores will be deployed (in the global project)

Storage (PVCs)

During the installation the following PVCs are created. Thus you must ensure you have enough storage available. In total, plan on using about 100Gi for the setup described in this tutorial. More space is needed for a production grade setup.

kubectl get pvc
NAME                                         STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS       VOLUMEATTRIBUTESCLASS   AGE
ccxdeps-ccx-nats-js-pvc-ccxdeps-ccx-nats-0   Bound    pvc-ca4425a3-41c1-4e31-844e-c089d643967d   10Gi       RWO            do-block-storage   <unset>                 36d
cmon-master-volume                           Bound    pvc-82bf7d9f-817d-4f0c-a14b-a95f259a6d40   20Gi       RWO            do-block-storage   <unset>                 36d
cmon-var-lib-cmon                            Bound    pvc-ea1f97fb-3ec0-4bc6-9431-5803b1f60744   1Gi        RWO            do-block-storage   <unset>                 36d
datadir-ccxdeps-0                            Bound    pvc-ee2924f6-b4d4-4fa4-bac3-fc6bc8426740   20Gi       RWO            do-block-storage   <unset>                 36d
pgdata-acid-ccx-0                            Bound    pvc-b2923d0f-c775-4916-8254-d959ac34bbae   10Gi       RWO            do-block-storage   <unset>                 36d
storage-alertmanager-0                       Bound    pvc-5ff9cd69-9426-4f35-b1a4-885f6d7dab06   1Gi        RWO            do-block-storage   <unset>                 36d
storage-ccxdeps-loki-0                       Bound    pvc-81c89a19-6c8a-40e4-bf35-931f0bfd196c   10Gi       RWO            do-block-storage   <unset>                 36d
victoria-metrics                             Bound    pvc-23c13e1c-3345-48c8-8796-ed1a3e1a0b04   16Gi       RWO            do-block-storage   <unset>                 36d

Ingress Controller

You must have a working and correctly setup ingress controller.

Make sure that you have ingress controller in your cluster and you are able to setup externally facing load balancers and that either your domain name points to the ingress IP or you have external DNS configured in your cluster.

By default, CCX is configured to use nginx as the ingress controller (ingressClassName: nginx).

kubectl get pods --all-namespaces -l app.kubernetes.io/name=ingress-nginx

The output should look like:

NAMESPACE       NAME                                        READY   STATUS    RESTARTS   AGE
ingress-nginx   ingress-nginx-controller-659f54cbff-fcszg   1/1     Running   0          5h38m
ingress-nginx   ingress-nginx-controller-659f54cbff-lq29d   1/1     Running   0          5h38m

All pods should be in a READY state, and STATUS should be Running.

Finally, check the external IP address of your NGINX Ingress Controller Load Balancer by running:

kubectl get svc -n ingress-nginx

The output should look like:

NAME                                 TYPE           CLUSTER-IP      EXTERNAL-IP                                 PORT(S)                      AGE
ingress-nginx-controller             LoadBalancer   10.108.22.0     146.190.177.145,2a03:b0c0:3:f0::9cb5:3000   80:31096/TCP,443:31148/TCP   5h40m
ingress-nginx-controller-admission   ClusterIP      10.108.28.137   <none>                                      443/TCP                      5h40m
ingress-nginx-controller-metrics     ClusterIP      10.108.13.85    <none>                                      9090/TCP                     5h40m

You must have an EXTERNAL-IP. If not, then the installation will fail.

Cert Manager

Make sure you have cert-manager set up:

kubectl get pods -n cert-manager

Verify that the pods are running:

NAME                                       READY   STATUS    RESTARTS   AGE
cert-manager-66dbc9658d-4hh55              1/1     Running   0          11d
cert-manager-cainjector-69cfd4dbc9-lmxf2   1/1     Running   0          11d
cert-manager-webhook-5f454c484c-bx8gx      1/1     Running   0          11d

Make sure the ClusterIssuer resource exist:

kubectl get clusterissuer

NAME                  READY   AGE
letsencrypt-prod      True    2y233d

If not, then it must be created.

Below is an example for basic LetsEncrypt Issuer.

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-prod
spec:
  acme:
    email: [email protected] #any email is fine. CHANGE THIS
    server: https://acme-v02.api.letsencrypt.org/directory
    privateKeySecretRef:
      name: some-key #if not defined, it will be created. CHANGE THIS
    solvers:
    - http01:
        ingress:
          class: nginx
To apply this file, change the two parameters that have a comment and save it as clusterissuer.yaml. Then use the command:
kubectl apply -f clusterissuer.yaml
There is no need to pass the namespace as ClusterIssuer resource is cluser wide resource. To verify, run the command:

kubectl describe clusterissuer letsencrypt-prod

If successful, the commmand returns:

Status:
  Acme:
..
  Conditions:
  ..
    Message:               The ACME account was registered with the ACME server
If you plan to use your own custom certificate, you will have to manually upload it to the ccx namespace. To validate if the the certificate is properly created, use the following command:
kubectl get cert -n ccx

NAME                        READY   SECRET                      AGE
ccx-ingress-cert            True    ccx-ingress-cert            19h
If the value returned in the READY column is True, the certificate is valid.

Setup DNS

Ensure you have a DNS A record set up, pointing the EXTERNAL_IP to the domain you wish to install CCX on, e.g., ccx.example.com (this is the endpoint the end-users will access):

A 146.190.177.145 ccx.example.com

Then also create a record for:

A 146.190.177.145 cc.example.com

cc.example.com will be the endpoint of ClusterControl where administrators will have detailed control and information about your datastores. We do no recommend that this endpoint it open directly to the public.

Note

cc.example.com and ccx.example.com are just examples. You can change them to e.g adm and dbaas. Just make sure you replace ccx.example.com and cc.example.com with the new names in the steps below.

Preparations

Add Severalnines Helm Chart Repository

Setup the Helm repo:

helm repo add s9s https://severalnines.github.io/helm-charts/
helm repo update

The complete helm-charts are located on GitHub.

Create a Namespace

We will deploy in a namespace called ccx:

kubectl create namespace ccx
kubectl config set-context --current --namespace=ccx

Install CCX Dependencies

First, we need to install the CCX dependencies (ccxdeps):

Installing the Dependencies

We will use the default values when setting up ccxdeps:

helm install ccxdeps s9s/ccxdeps --debug --wait -n ccx

Check that the pods are RUNNING:

kubectl get pods -n ccx
NAME                                         READY   STATUS    RESTARTS   AGE
acid-ccx-0                                   1/1     Running   0          7m13s
alertmanager-0                               1/1     Running   0          7m22s
ccxdeps-0                                    1/2     Running   0          67s
ccxdeps-ccx-nats-0                           3/3     Running   0          7m22s
ccxdeps-ccx-nats-box-c777b9b98-thhfs         1/1     Running   0          7m22s
ccxdeps-keycloak-0                           1/1     Running   0          7m22s
ccxdeps-loki-0                               1/1     Running   0          7m22s
ccxdeps-loki-gateway-56c8f56c6b-kw9s8        1/1     Running   0          7m22s
ccxdeps-postgres-operator-6847687666-79x8l   1/1     Running   0          7m22s
mysql-operator-5876cf5b66-6knkp              1/1     Running   0          27s
victoria-metrics-845694c98d-24wng            1/1     Running   0          7m22s
victoria-metrics-alert-7f695bf5c8-96ch5      1/1     Running   0          7m22s

Note

If the mysql-operator pod fails to start with the error (use kubectl logs mysql-operator-5876cf5b66-6knkp to check):

persists try setting MYSQL_OPERATOR_K8S_CLUSTER_DOMAIN via environment

Then do:

kubectl edit deployment -n ccx mysql-operator

Locate the env section and set:

env:
  - name: MYSQL_OPERATOR_K8S_CLUSTER_DOMAIN
    value: "cluster.local"

Finally, restart:

kubectl rollout restart deployment -n ccx mysql-operator

Configuring Cloud Credentials in K8s Secrets

In order to configure CCX for Openstack you will need to provide cloud credentials. Cloud credentials should be created as Kubernetes secrets in the format specified in secrets-template-openstack.yaml. The template looks like this:

In the template, the secrets are specified in clear text (stringData):

---
apiVersion: v1
kind: Secret
metadata:
  name: openstack
type: Opaque
stringData:
  MYCLOUD_AUTH_URL: YOUR
  MYCLOUD_PASSWORD: OPENSTACK
  MYCLOUD_PROJECT_ID: CREDENTIALS
  MYCLOUD_USER_DOMAIN: HERE
  MYCLOUD_USERNAME: AND_HERE
---
apiVersion: v1
kind: Secret
metadata:
  name: openstack-s3
type: Opaque
stringData:
  MYCLOUD_S3_ENDPOINT: CHANGE_ME
  MYCLOUD_S3_ACCESSKEY: CHANGE_ME
  MYCLOUD_S3_SECRETKEY: CHANGE_ME
  MYCLOUD_S3_INSECURE_SSL: false #'true' if your S3 connection is unencrypted (http)  or 'false' if it is (https).

Important

The secrets contain a number of fields starting with MYCLOUD. This must be replaced with how you want to identify your cloud.

If you want to identifty the cloud as grok, then replace MYCLOUD with grok in the openstack-secrets.yaml file and make sure you use grok in the minimal-values.yaml file referenced later in this tutorial. Later, your will also set a real name for your cloud.

MYCLOUD_S3_ENDPOINT must be specified without http:// or https://. Thus it should look like s3.example.com.

Make sure you have your OpenStack RC file handy as it contains the information you need. Also ensure you have S3 credentials. S3 will be used to store backup data coming from the datastores the end user deploys.

Fill out the details, and save the file as openstack-secrets.yaml, and then run:

 kubectl apply -n ccx -f openstack-secrets.yaml

You can also use the script create-openstack-secrets.sh which will prompt you to enter the OpenStack credentials. It will create the credentials base64 encoded. Download the scripts:

curl -o create-openstack-secrets.sh https://raw.githubusercontent.com/severalnines/helm-charts/main/charts/ccx/scripts/openstack/create-openstack-secrets.sh
curl -o create-openstack-s3-secrets.sh https://raw.githubusercontent.com/severalnines/helm-charts/main/charts/ccx/scripts/openstack/create-openstack-s3-secrets.sh
chmod u+x create-openstack-secrets.sh
chmod u+x create-openstack-s3-secrets.sh

Now run the scripts and enter the details:

./create-openstack-secrets.sh

and to generate credentials for S3:

./create-openstack-s3-secrets.sh

Apply the generated secrets files:

kubectl apply -n ccx -f openstack-secrets.yaml
kubectl apply -n ccx -f openstack-s3-secrets.yaml

Verify the secrets

Verify that the secrets are created:

kubectl get secrets -n ccx

Important

The secrets contain a number of fields starting with MYCLOUD. This identifier MYCLOUD must match the name - code: mycloud and mycloud: in your configuration.

Thus, if you have a cloud called grok, then replace MYCLOUD with grok in the openstack-secrets.yaml and openstack-s3-secrets.yaml files and make sure you use grok in the minimal-values.yaml file referenced later in this tutorial.

Create Security Group ccx-common

You must also create a security group. Let's call it ccx-common.

ccx-common must allow all TCP traffic from all k8s nodes where CCX is running.

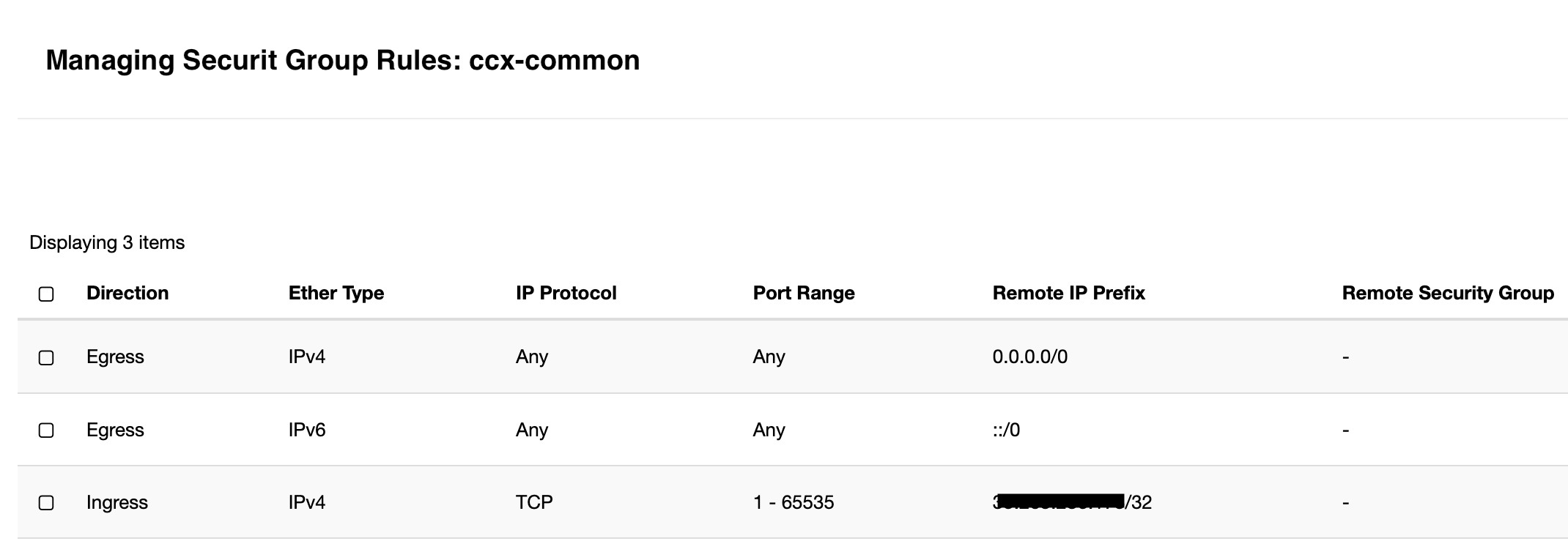

The Egress must also be allowed. Below is a screenshot showing the ccx-common. The EXTERNAL-IP is specified for the port range 1-65535.

Important

If you have three worker nodes, and they have different IP addresses then you must add three entries to the security group, allowing 1-65535 for each IP address as egress.

ccx-common

Prepare the OpenStack Values File and OpenStack

We will use a minimal OpenStack configuration as the template. At this stage, you must have the following information/resources created in your OpenStack project:

Item Description
floating_network_id This is the public network. All instances must be assigned a public IP (read more below).
network_id This is the private network. You must create this in OpenStack.
project_id The project ID where the resources will be deployed. This is your OpenStack project ID. All resources are deployed in the same OpenStack project.
image_id This image must be Ubuntu 22.04 of a recent patch level. Cloud-init will install the necessary tools on the image. Can be updated for new versions/patches.
instance_type Code for the instance type you will use, e.g., x4.2c4m.100g. Recommended: 2vCPU and 4GB minimum. Must match an existing OpenStack flavor.
volume_type Code for the volume type you will use, e.g., fastdisk. Must match the OpenStack volume type name.
region Name of the region, e.g., nova or sto1.
ccx-common Security group.

In the network section in the values.yaml file that will be created in the next step we have a network called code: public, and the ID of this network is also set in the floating_network_id: b19680b3-c00e-40f0-ad77-4448e81ae226. This is the public pool of IP addresses that are assigned to the VMs.

Another network, for internal/private communication (marked with network_id: 21dfbb3d-a948-449b-b727-5fdda2026b45 below) between VMs are also needed to support database replication. These networks are outlined below.

:::important

The VMs that will be create MUST be reachable from the CCX controlplane, hence the use if public IPs in this setup.

:::

Public network

The CCX controlplane must be able to access the instances over the network. We recommend using public IPs.

The public network name is identified by the name of the public network as used in Openstack. In the example below we call the network public.

Here is an example how it is created (and also showing four instances attached to the public network). In the minimal-openstack.yaml the floating_network_id represents this network. Moreover, if you use a pool of public ip addresses, then you need to set public_pool to the same value as the floating_network_id.

Specifying a public pool allows OpenStack to automatically create public IPs.

If the public pool is not specified then CCX will explicitly create and attach public IPs to the instance. Thus, configuring this depends on how you setup and design your Openstack network. We recommend that CCX explicitly create and attach public ip, thus not using the public pool.

Note

The most common is not to use the public_pool (i.e. leave it empty) and just specify the floating_network_id.

Below are examples of a public network setup for OpenStack.

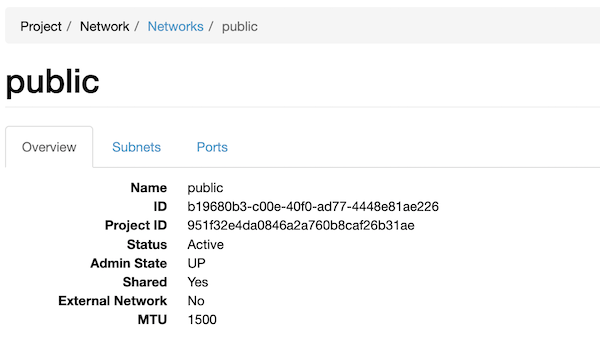

Overview

OpenStack Public Network Example 2

Subnets

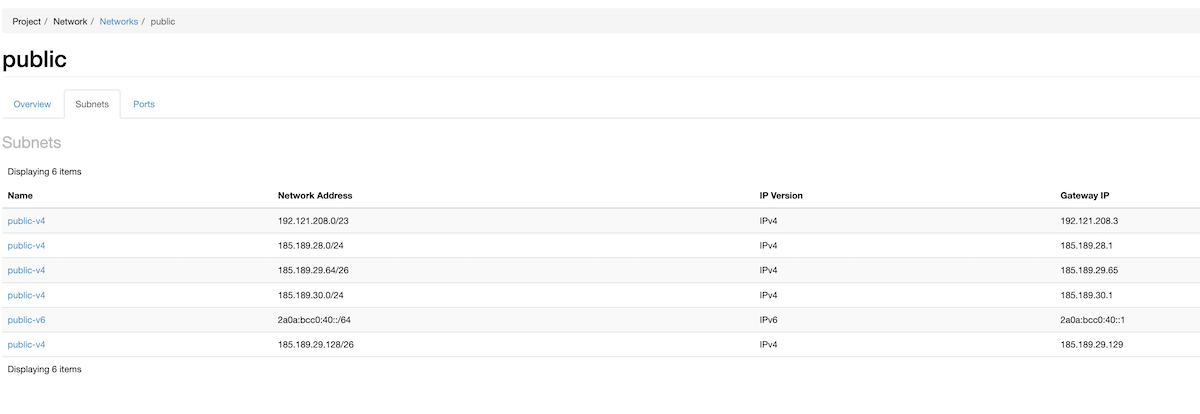

Here, in this picture, the public network is configured with IP pools, thus public_pool is set to the same value as floating_network_id:

OpenStack Public Network Example 1

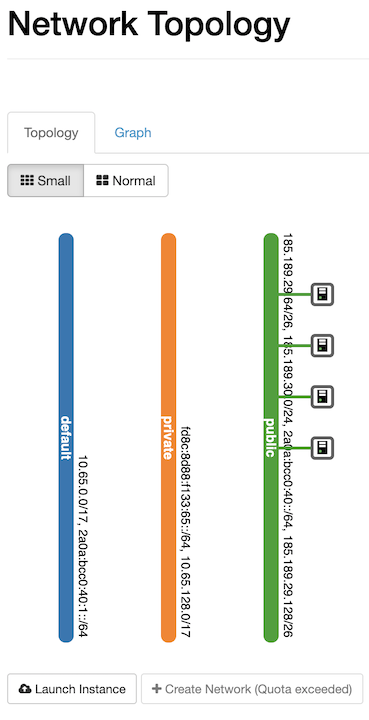

Topology view

OpenStack Public Network Example 3

Private/internal network

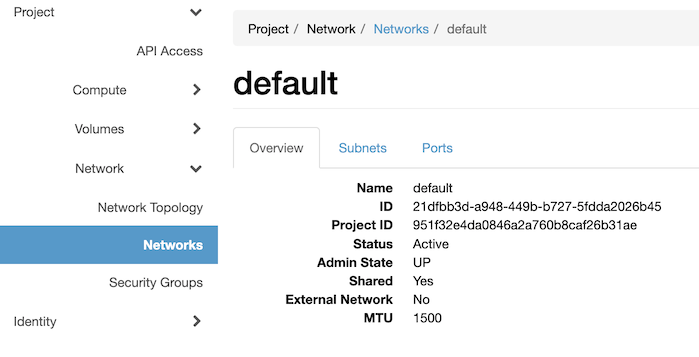

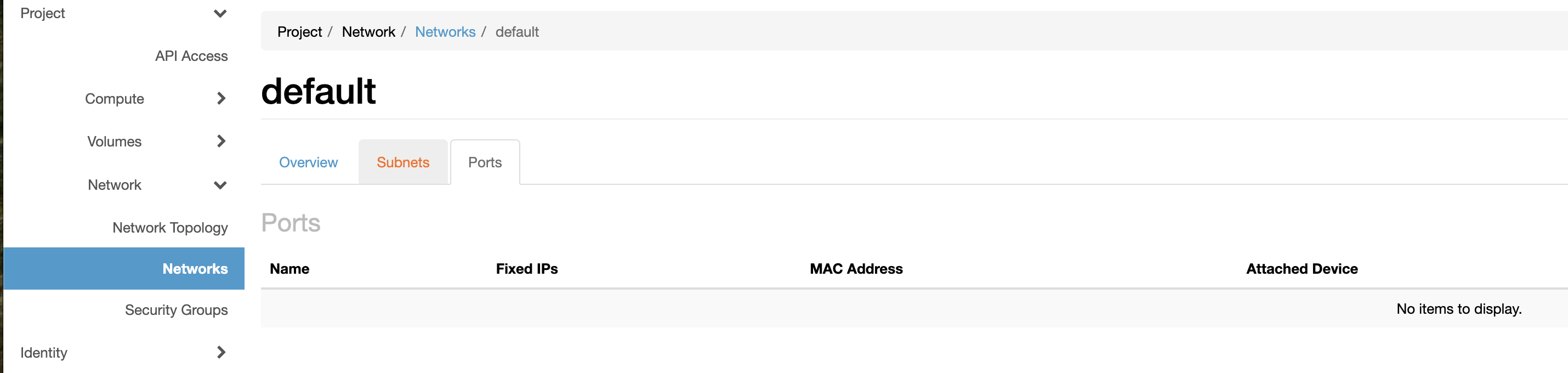

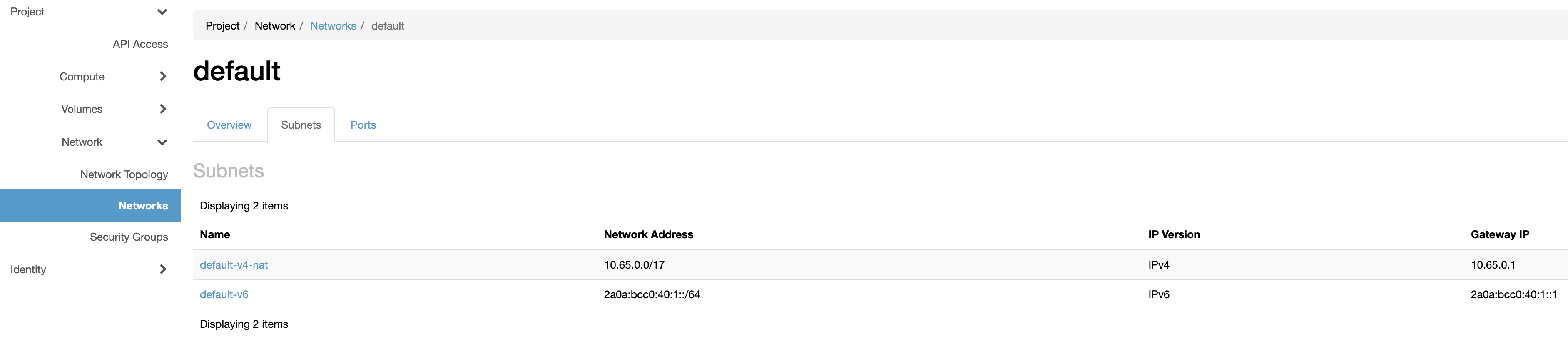

Then for the internal network (network_id: 21dfbb3d-a948-449b-b727-5fdda2026b45) below, these diagrams shows the setup of the 'default' network. It will be used for internal communication between the VMs (database replication).

Overview

OpenStack Private Network Example 1

Subnets

OpenStack Private Network Example 2

Ports

OpenStack Private Network Example 3

Download the minimal values file:

curl -o minimal-openstack.yaml https://raw.githubusercontent.com/severalnines/helm-charts/main/charts/ccx/minimal-values-openstack.yaml

Edit the minimal-openstack.yaml and replace all MY_* with the values for floating_network_id, network_id, etc. Double-check that you do not omit or make any typos. Also, ensure that instance types and volume types are specified.

Sample Minimal OpenStack Values File

Below is an example. Please note that you can add more instance types, volume types, clouds, etc. We recommend starting small and expanding the configuration.

Note

A number of identifiers are case sensitive: ccx.config.clouds[].regions[].code, ccx.config.clouds[].regions[].availabiliity_zones[].code, ccx.services.deployer.config.openstack_vendors[].regions[].identifier and also the codes for the instance_types, flavors, volumes are network_types case-sensitive. Be consistent!

ccxFQDN: ccx.example.com
ccFQDN: cc.example.com
cc:
  cidr: 0.0.0.0/0
cmon:
  licence: #insert the licence key you've received here
ccx:
  # List of Kubernetes secrets containing cloud credentials.
  cidr: 0.0.0.0/0
  cloudSecrets:
    - openstack  # This secret must exist in Kubernetes. See 'secrets-template.yaml' for reference.
    - openstack-s3
  env:
     DISABLE_ROLLBACK: "false" #if a datastore fails to deploy, then it will not be deleted. Helps with debugging. Set to "false" for prod.
  ingress:
    ssl:
      clusterIssuer: letsencrypt-prod
  config:
    clouds:
      - code: mycloud  # Unique code for your cloud provider
        name: MyCloud  # Human-readable name
        instance_types:
          - code: x4.2c4m.100g
            cpu: 2
            disk_size: 100
            name: x4.2c4m.100g
            ram: 4
            type: x4.2c4m.100g
        volume_types:
        - code: fastdisk #the code must match the openstack volume type name.
          has_iops: false
          info: Optimized for performance
          name: Fast storage
          size:
            default: 60 # we recommend 100GB as minimum for production systems.
            max: 1000
            min: 30
        network_types:
          - code: public
            name: Public
            in_vpc: false
            info: >
              All instances will be deployed with public IPs.
              Access to the public IPs is controlled by a firewall.
        regions:
          - code: sto1  # this is your region code. Case-sensitive.
            display_code: my-region1
            name: Stockholm # Human-readable name
            city: Stockholm
            country_code: SE
            continent_code: EU
            availability_zones:
              - code: nova # Case-sensitive
                name: az1 # Human-readable name
  services:
    deployer:
      config:
        openstack_vendors:
          mycloud:
            compute_api_microversion: "2.79"
            floating_network_id: b19680b3-c00e-40f0-ad77-4448e81ae226  # Replace with actual ID
            #public_pool: b19680b3-c00e-40f0-ad77-4448e81ae226 # Enable this if a public pool is used.
            network_api_version: NetworkNeutron
            network_id: 21dfbb3d-a948-449b-b727-5fdda2026b45  # Replace with actual network ID
            project_id: 5b8e951e41f34b5394bb7cf7992a95de  # Replace with your OpenStack project ID
            regions:
              sto1:  # region id, must be consistently set/named. Case-sensitive.
                image_id: 936c8ba7-343a-4172-8eab-86dda97f12c5  # Replace with image ID for the region
                # secgrp_name refers to the security group name used by CCX to access datastore VMs.
                # It must be created manually and allow all TCP traffic from all Kubernetes nodes where CCX is running.
                secgrp_name: ccx-common  # Recommended to use a dedicated security group

Install CCX

Now it is finally time to install CCX.

Make sure you change cc.example.com and ccx.example.com to the domain names you use. Also change the clusterIssuer to the one you created previously.

helm upgrade --install ccx s9s/ccx --debug --wait -f minimal-openstack.yaml

Wait for it to finish, and check that the pods are RUNNING:

kubectl get pods -n ccx

CCX Web UI

Open https://ccx.example.com/auth/register?from=ccx in a web browser and register a new user. Please note that email notifications are not yet configured. You can just press the Back button after the signup.

Try to deploy a datastore. If it fails at around 8% or 16%, then there is a problem with the infrastructure. See the troubleshooting section below for clues.

Basic Troubleshooting

During the creation of a datastore, several resources are set up: Security groups, volumes, networks, and instances. If you run into issues, a good place to start is to look at logs from the ccx-runner-service-NNN pod:

kubectl logs ccx-runner-service-NNNN

Deployment fails

Usually deployment fails because of:

  • firewall issues (ccx-common does not contain all the IP of all k8s worker nodes).
  • quota issues.
  • cloudinit fails.
  • other networking issues preventing the CCX to reach the VM/instance.

Check the following

  • Inspect the logs of the ccx-runner service: kubectl logs ccx-runner-service-NNNN
  • See if you can SSH into the deployed VM and look for errors in cloudint (/var/log/cloud-init.log and /var/log/cloud-init-output.log). See below how to SSH to the VM using ssh-db-node:

ssh-db-node Obtain the UUID of the datastore from the CCX UI.

kubectl run -it --rm ssh-db-node --image=europe-docker.pkg.dev/severalnines-public/ccx/ssh-db-node:latest --restart=Never -- <store_uuid>

Timeouts

If you see issues with timeouts:

  • Ensure you have updated the ccx-common security group with the correct IP address (the EXTERNAL-IP), but you might also need to add the IPs of the nodes.

No Valid Certificates

First check the currently existing certificates with

kubectl get cert -n ccx

NAME                        READY   SECRET                      AGE
ccx-ingress-cert            False   ccx-ingress-cert            19h
If the certificate has False in the READY column, procced with the following:

kubectl describe certificate -n ccx ccx-ingress

If the certificate required by the ingress is missing, run:

kubectl get challenges -n ccx

In the status field of the challenge, you will see the error that is preventing the certificate from being created or functioning correctly.
If no challenge exists, run the following commands:

kubectl get order.acme.cert-manager.io
NAME                        STATE     AGE
cc.localhost-xxxxxxx        errored   6h23m

kubectl describe order.acme.cert-manager.io cc.localhost-xxxxxxx | grep Reason

This will display the reason why the certificate could not be created.

If the error is something like Error presenting challenge: admission webhook "validate.nginx.ingress.kubernetes.io" denied the request: ingress contains invalid paths: path /.well-known/acme-challenge/6Uf-bGI5H8fwC-hY3ItfraPvG__PvowY--WL5-hiyWw cannot be used with pathType Exact, go to the nginx-ingress-controler namespace, and make sure that the use-proxy-protocol is set to false in the ConfigurationMap. You can use kubectl get configmap -n ingress-nginx to get the ConfigurationMap. The reason this is something that needs to be done is that unless LoadBalancer that is being used is custom installed (e.x HAProxy), OpenStack doesn't support proxy protocol.

If that doesn't help or using the use-proxy-protocol is necessary, do the following:

kubectl get validatingwebhookconfiguration
NAME                                 WEBHOOKS   AGE
cert-manager-webhook                 1          44h
ingress-nginx-xxxxx-admission        1          36d
Edit the ingress-nginx-xxxxx-admission, such that you add in the namespaceSelecor the following:
namespaceSelector:
  matchExpressions:
  - key: nginx-webhook
    operator: NotIn
    values:
    - disabled
Save it and restart all of the nginx ingress pods. After that is done, add label to the ccx namespace kubernetes.io/metadata.name=ccx. Give it 5 minutes for the internal stuff to sync, than remove the ccx-ingress manually. This will cause it to be recreated, and now it should be in ready state within few minutes.

See our Troubleshooting section for more information.

Next Steps
